Все характеристики
РТВ 601-0/0-ИС коробка соединительная взрывозащищенная
0
Арт. 2294016
109 814 тенге/шт
Модель: РТВ 601
Тип кабельных вводов: 0/0-ИС
Максимальный ток нагрузки, А: 50
Рассчитать доставку
Характеристики
Производитель
:
ССТ Premium
Страна производства
:
Россия
Габаритные размеры, мм
:
160x160x94,5
Степень защиты по ГОСТ
:
?
Обозначение уровня защищённости оборудования от внешних воздействий согласно стандарту ГОСТ
IP66
Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах
Производитель
ССТ Premium
Страна производства
Россия
Габаритные размеры, мм
160x160x94,5
Степень защиты по ГОСТ
?
Обозначение уровня защищённости оборудования от внешних воздействий согласно стандарту ГОСТ
IP66
Срок службы, лет
10
Срок гарантии, лет
1
Тип обогрева
промышленный
Коллекция
Соединительные коробки ССТ РТВ
Напряжение питания, В
?
Значение напряжения сети, необходимое для нормальной работы устройства, указывается в вольтах.
до 550
Минимальная температура окружающей среды, ºС
?
Минимальный безопасный предел температуры окружающего воздуха для стабильной работы оборудования
-60
Максимальная температура окружающей среды, ºС
?
Максимально допустимое значение температуры воздуха, при которой сохраняется нормальная работа устройства
55
Минимальная температура монтажа, ºС
?
Минимально допустимая температура воздуха при монтаже устройства
-60
Для взрывоопасных зон
?
Подходит для установки в местах с повышенной опасностью взрыва или воспламенения
да
Маркировка взрывозащиты
?
Специальная маркировка, обозначающая степень защиты оборудования для безопасной работы во взрывоопасных зонах
1Ex e IIC T3…T6 Gb X
Температурная группа взрывоопасной зоны
?
Классификация зон по максимальному уровню рабочей температуры для предотвращения взрыва. Чем выше уровень группы – тем в более опасных зонах можно использовать устройство
Т6
Тип корпуса
РТВ 601
Тип кабельных вводов
?
Тип соединений для ввода кабелей в коробку / Тип отверстий вывода кабелей наружу из корпуса монтажной коробки
0/0-ИС
Количество кабельных вводов
?
Общее количество входных, выходных и дополнительных отверстий для кабелей
1
Максимальный ток нагрузки, А
?
Наибольшее значение тока, которое устройство выдерживает длительное время без повреждений
50
Климатическое исполнение и категория размещения по ГОСТ
?
Условия внешней среды и места установки оборудования согласно требованиям стандарта ГОСТ
УХЛ1
Тип комплектующей
соединительная коробка
Количество «входных» кабельных вводов, шт
?
Число отверстий для подвода кабелей внутрь монтажной коробки
0
Количество «выходных» кабельных вводов, шт
?
Число отверстий вывода кабелей наружу из корпуса монтажной коробки
0
Тип клеммных зажимов
?
Вид крепления проводов в монтажной коробке: винтовые, пружинные, самозажимные
винтовой
Тип устройства механической защиты нагревательного кабеля
?
Вид дополнительной брони или оболочки, предохраняющей кабель от механических повреждений
—
Вид взрывозащиты соединительной коробки
повышенная защита
Модель
РТВ 601

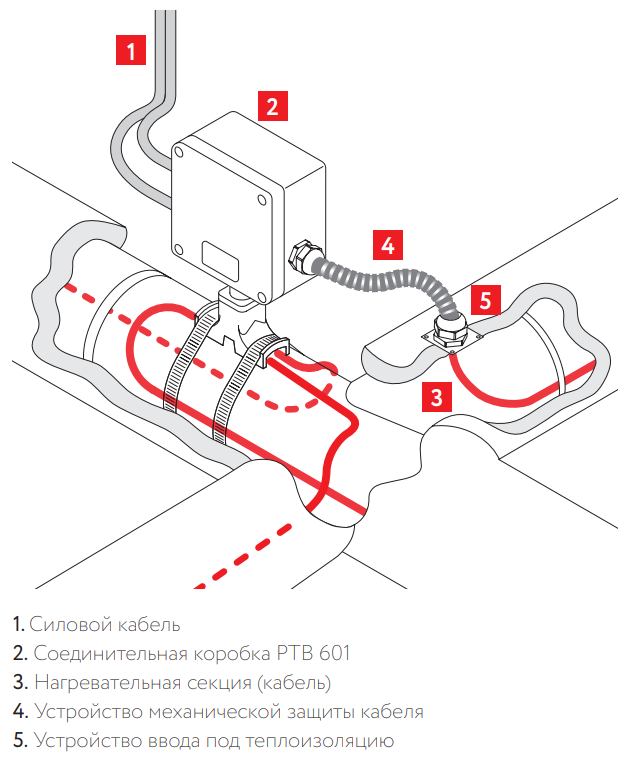

Коробка РТВ 601-0/0-ИС предназначена для подключения к силовой сети саморегулирующихся электрических нагревательных кабелей*, а также для разветвления саморегулирующихся нагревательных кабелей. Коробка также позволяет осуществить разветвление силового кабеля для создания инженерных сетей. Коробка комплектуется устройством ввода под теплоизоляцию и крепится непосредственно на поверхность трубопровода, резервуара. Коробка позволяет выполнить подключение до четырех саморегулирующихся электрических нагревательных кабелей.
Конструкция корпуса обеспечивает защиту от проникновения влаги и пыли степени IP66 и высокую коррозионную стойкость. Кабельные вводы коробки предназначены для подключения небронированных силовых кабелей диаметром от 7 до 18 мм или бронированных силовых кабелей диаметром от 12 до 20 мм. Применяемые клеммные наборы позволяют обеспечить подключение многожильных или одножильных проводов сечением от 1,5 до 10 мм².
Подключаемые нагревательные кабели с места выхода из коробки до места входа под теплоизоляцию могут быть дополнительно защищены устройством механической защиты, которое имеет исполнение на основе металлорукава в ПВХ изоляции (РШ) или на основе трубы гофрированной стальной (РС). При оборудовании соединительной коробки устройством механической защиты в состав коробки дополнительно входят специальные кабельные вводы для возможности осуществления подключения.
Для заказов доступны исполнения коробок с винтовыми или пружинными клеммными зажимами.
Конструкция корпуса обеспечивает защиту от проникновения влаги и пыли степени IP66 и высокую коррозионную стойкость. Кабельные вводы коробки предназначены для подключения небронированных силовых кабелей диаметром от 7 до 18 мм или бронированных силовых кабелей диаметром от 12 до 20 мм. Применяемые клеммные наборы позволяют обеспечить подключение многожильных или одножильных проводов сечением от 1,5 до 10 мм².
Подключаемые нагревательные кабели с места выхода из коробки до места входа под теплоизоляцию могут быть дополнительно защищены устройством механической защиты, которое имеет исполнение на основе металлорукава в ПВХ изоляции (РШ) или на основе трубы гофрированной стальной (РС). При оборудовании соединительной коробки устройством механической защиты в состав коробки дополнительно входят специальные кабельные вводы для возможности осуществления подключения.
Для заказов доступны исполнения коробок с винтовыми или пружинными клеммными зажимами.

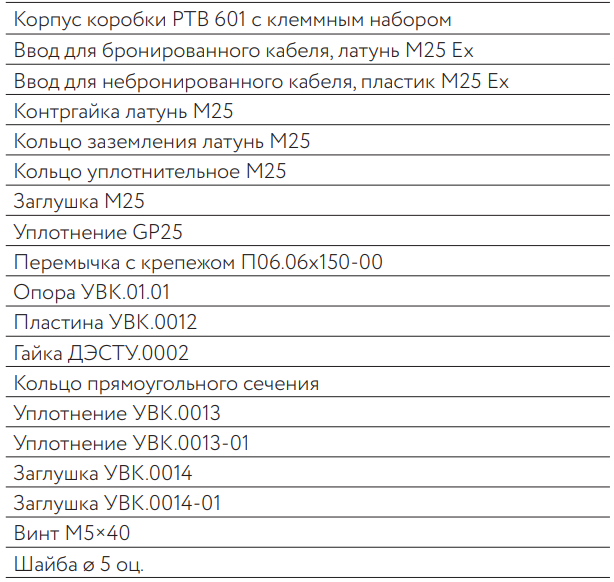

Комплект поставки соединительных коробок РТВ 601-0/0-ИС:
Особенности соединительных коробок РТВ 601-0/0-ИС:
- Эффективное решение для подключения питания и ввода под теплоизоляцию саморегулирующихся электрических нагревательных кабелей
- Применяется для всех типов саморегулирующихся электрических нагревательных кабелей
- Исключает риск повреждения нагревательных кабелей в местах заделки
- Имеет сертификат соответствия для применения во взрывоопасных зонах
- Все необходимые комплектующие входят в состав коробки
- Широкий спектр решаемых задач
- Быстрый и простой монтаж
- Высокая термостойкость
- Не подвергается коррозии

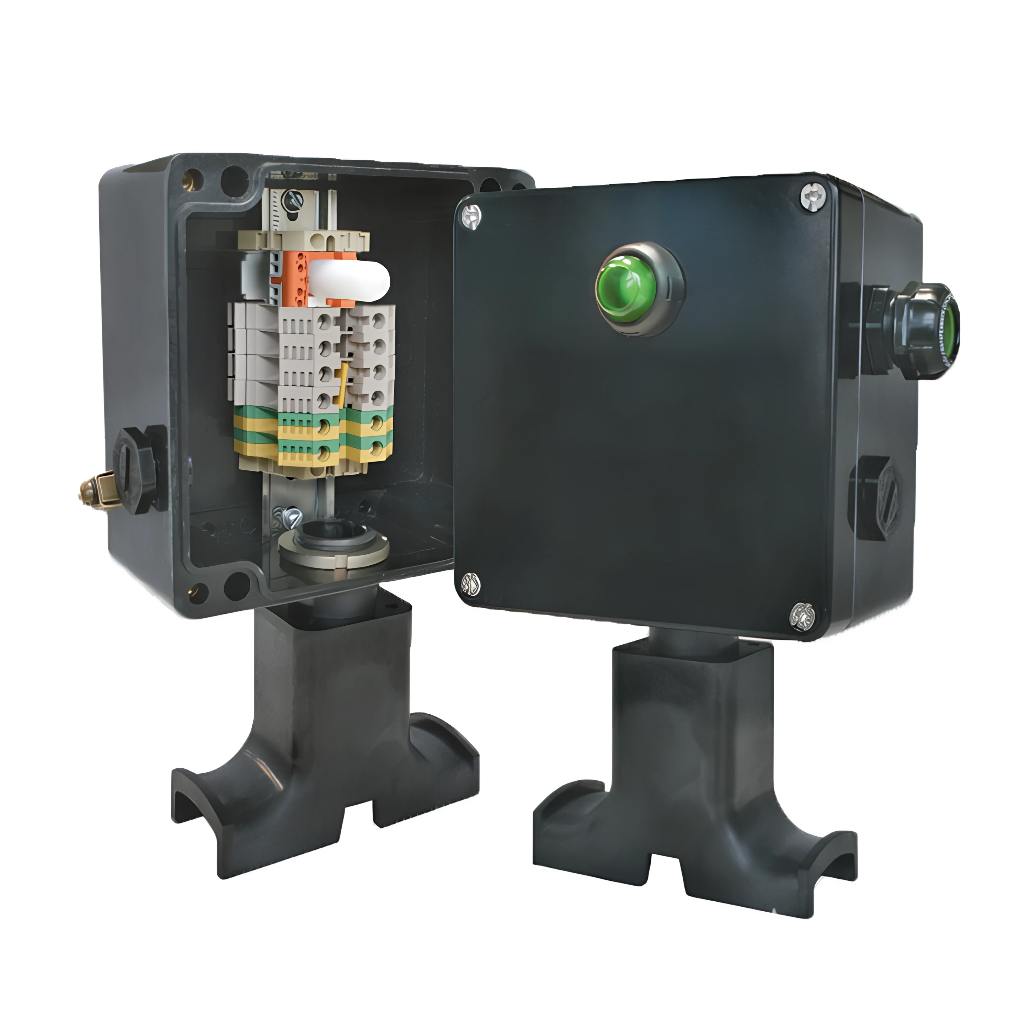

Конструкция соединительных коробок РТВ 601-0/0-ИС:

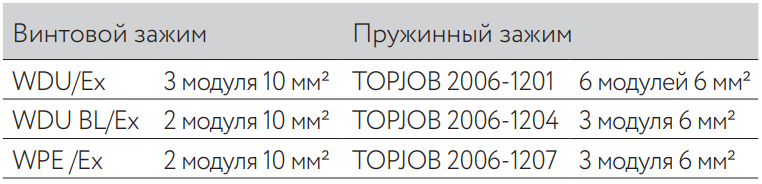

Клеммный набор:

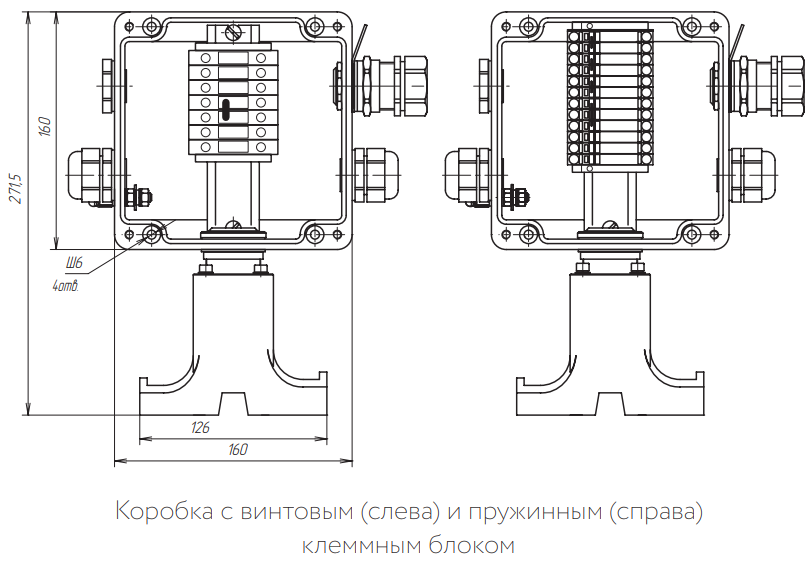

Габаритные размеры соединительных коробок РТВ 601-0/0-ИС:
